Each way requires a different kind of cable. Connections between a PC and a modem use a modem cable (in which wires go "straight through", pin to pin), whereas connections between two computers use a null modem cable (in which pairs of wires are cross-connected). To complicate matters, different kinds of connectors might be needed on each end. While the DCE port is almost always a female DB25, and the PC port is always supposed to be of male gender, the PC port can take many shapes: DB25, DB9, Din8, RJ45, USB, etc; thus many combinations are possible.
Connecting a serial port to an external modem is usually straightforward because all external modems have the same data connector (female DB25) and for every kind of computer that has a serial port, no matter what the connector type, a modem cable should be available (usually from the computer manufacturer).
Connecting two computers together, however, can be more challenging.
1. V.24 is the European standard equivalent RS-232, compatible but using different terminology.
2. RTS is also known as Ready to Receive (RTR).
3. CD is also known as Data Carrier Detect (DCD) or Received Line Signal Indicator (RLSI).
The TD and RD wires carry the data, the Signal Ground wire allows the
signals on the other wires to be measured, and the other circuits monitor
the state of the connection.

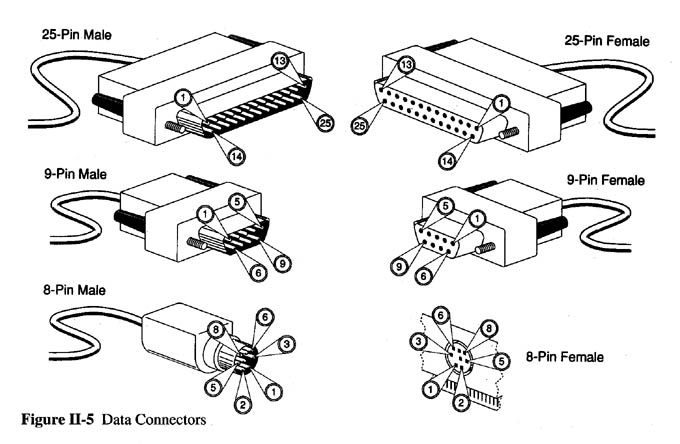

Figure II-5 from Using C-Kermit shows three common connector types (DB25, DB9, Mini Din8), with the pin numbering used for each gender. As you can see, the two genders are mirror images of each other so when they they mate, pin 1 connects to pin 1, pin 2 to pin 2, and so on.

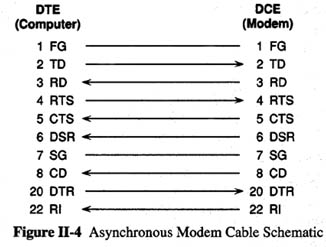

Modem Connections (DTE to DCE)A modem cable is simple and the various signals do their jobs in a straightforward way. The cable must convey all the signals listed in the previous section, plus Signal Ground (and Frame Ground for electrical safety) for a modem connection to function properly.
Most computers have a male serial-port connector, either DB25 or DB9. If it is a DB25, then all the wires in the cable are "straight through", pin 1 on one end to pin 1 on the other; 2 to 2, and so on as shown in the figure. Wires for pins 9-19 and 23-25 might be missing from the cable since they are generally not used. If the computer has a DB-9 connector, then the wires connect the corresponding pins as shown the table above: 2-to-3, 3-to-2, 4-to-7, and so on.
Computer and terminal serial ports are supposed to be male, so the computer end of a regular modem cable is female. In case the serial port has a female connector, you can buy a "Gender Changer".

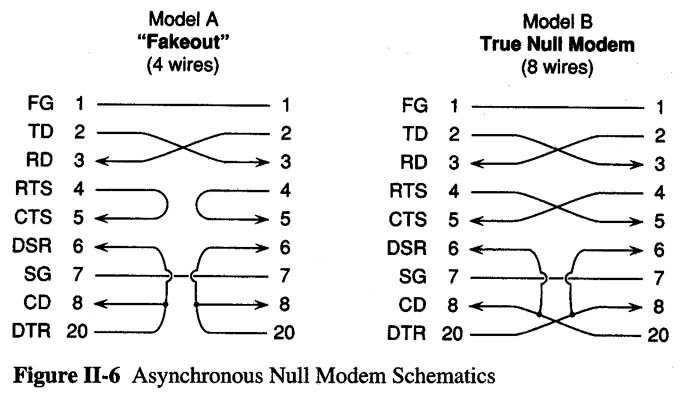

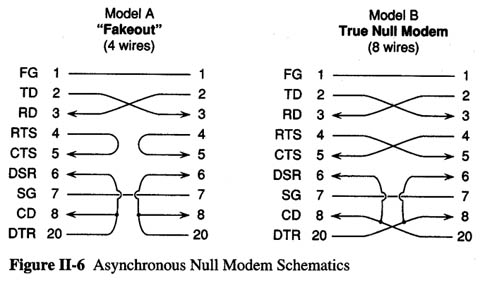

Direct Serial Connections (DTE to DTE)When two computers (or other DTEs) are to be connected directly, each one must be "tricked" into thinking the other is a modem (DCE). The trickery is done entirely with the wires that connect the pins. The result is a null modem cable – a cable that presents itself to each computer as if it were coming out of a modem. There are several classes of null modem cables, each with many variations:
The figure shows the connections for DB25 connectors; use the table above to get the corresponding pins for DB9.
By the way, although it was common in days gone by for us to build our own cables, it is (and was even then) much easier to simply buy a "modem eliminator" or "null modem adaptor" from a computer supply store (SEARCH). This is a double ended connector that already has all of the Model B crossovers implemented inside. They come in male-male, male-female, and female-female varieties. Attach a regular modem cable to each computer and then interconnect the two modem cables with the modem eliminator.
The modem eliminator that you want has a connector of the appropriate shape (DB9 or DB25) and gender (male or female) on each end, and is asynchronous, NOT synchronous. A synchronous null modem is something else entirely, with electronics, clock pulse generators, and so forth.
For greater detail, see the Kermit books.
